User use of thermometer on preamplifiers

The thermometer is the LM73 tha has a 14-bits digital ouput via I2C bus. Its schematic is in figure Figure_I2C_mux. It has been developed one function ofr its managing: termometro_lettura() with input parameters: uint8_t scheda_su_scheda_giu, uint8_t canale, uint32_t *temperatura_in_microK , the ouput is the pointer to temperatura_in_microK

uint32_t temperatura_in_microK;

termometro_lettura( scheda_su_scheda_giu_provvisorio, canale_ , &temperatura_in_microK )

termometro_lettura
void termometro_lettura(uint8_t scheda_su_scheda_giu, uint8_t canale, uint32_t *temperatura_in_microK)
Read the termometer on preamplifier.
Definition: I2C_termometro.c:79

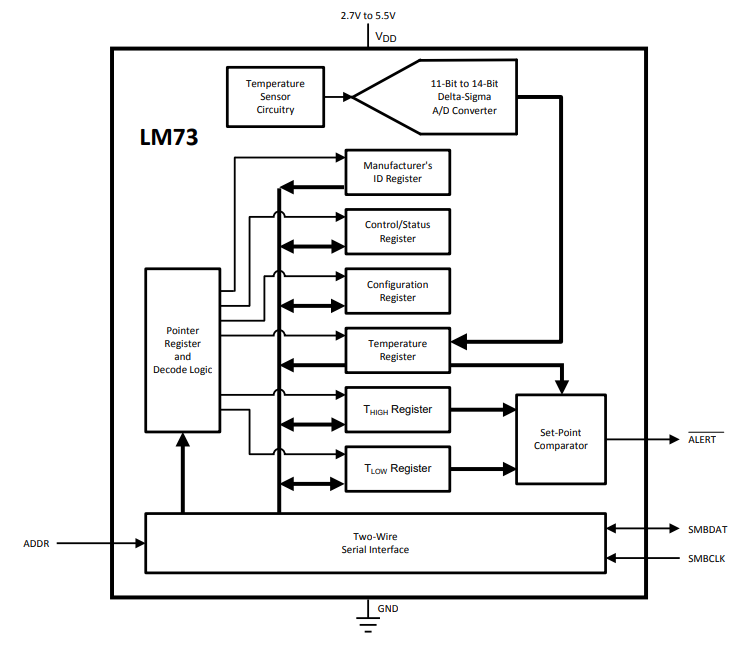

FigureLM73 1: LM73 scheme

br

Thermometer function

Thermometrs are sent into shut down mode at the startup by means of termometro_sht_down( uint8_t scheda_su_scheda_giu, uint8_t canale ).
Here is the reading thermometer function termometro_lettura():

void termometro_lettura( uint8_t scheda_su_scheda_giu,  uint8_t canale, uint32_t *temperatura_in_microK ){

    //< registri termometro
    #define reg_temperatura 0
    #define reg_configuration   1
    #define reg_control_status   4
    //< Commands
    #define Shut_down_and_one_shot_command_for_config_reg 0x84
    #define Max_accuracy_command_for_control_reg  0x60
    #define maschera_DAV 1

    uint8_t comando1[]={reg_control_status,Max_accuracy_command_for_control_reg};
    uint8_t comando2[]={reg_configuration, Shut_down_and_one_shot_command_for_config_reg};
//  uint8_t comando2[]={reg_configuration, 0};
    uint8_t comando3[]={reg_temperatura};
    uint8_t comando4[]={reg_control_status};
    uint8_t lettura[2];


//void I2C_mux_select_ch( uint8_t scheda_su_scheda_giu, I2C_mainboard,uint8_t  canale_da_abilitare)
         I2C_mux_select_ch(  scheda_su_scheda_giu,  I2C_mainboard, termometro_adrress[canale].quale_I2C);

            I2C_mux -> MasterTransmit( termometro_adrress[canale].indirizzo_I2C, comando1, 2,false); //bestacuracy
            while( I2C_mux -> GetStatus().busy);  // White transmission complete
            Aspetta_tanti_ms(5);
            I2C_mux -> MasterTransmit( termometro_adrress[canale].indirizzo_I2C, comando2, 2,false); //onseshot meas
            while( I2C_mux -> GetStatus().busy);  // White transmission complete
            Aspetta_tanti_ms(150);
            if(Error_bad_operation) ERROR_codifica_errore(scheda_su_scheda_giu ,error_address_I2C0_B  , I2C_error_termometro_0  + canale, 1);

            lettura[0]=0;
            uint8_t conta_err=0;
            while(  ((lettura[0] & maschera_DAV) == 0) && (conta_err<10) ){
                I2C_mux -> MasterTransmit( termometro_adrress[canale].indirizzo_I2C, comando4 , 1,false); //lettura control reg per dato pronto
                while( I2C_mux -> GetStatus().busy);  // White transmission complete
                Aspetta_tanti_ms(5);

                I2C_mux -> MasterReceive( termometro_adrress[canale].indirizzo_I2C, lettura, 2,false);  //Read back the temperature
                while( I2C_mux -> GetStatus().busy);
                conta_err ++;
            }
            if(conta_err >=10) ERROR_codifica_errore(scheda_su_scheda_giu ,error_address_I2C0_B  , I2C_error_termometro_0  + canale, 1);

            I2C_mux -> MasterTransmit( termometro_adrress[canale].indirizzo_I2C, comando3, 1,false); //read temperature
            while( I2C_mux -> GetStatus().busy);  // White transmission complete
            Aspetta_tanti_ms(5);

            I2C_mux -> MasterReceive( termometro_adrress[canale].indirizzo_I2C, lettura, 2,false);  //Read back the temperature
            while( I2C_mux -> GetStatus().busy);

            *temperatura_in_microK = ((uint32_t)lettura[0] <<8 ) + (uint32_t) lettura[1] ;
            *temperatura_in_microK = *temperatura_in_microK & 0x7FFF ;
            *temperatura_in_microK = (*temperatura_in_microK  >> 2 ) *31250; //Resilt in microK

            I2C_mux_select_ch(  scheda_su_scheda_giu, I2C_mainboard,  I2C_mux_disabilita_tutto);

}

The selction of the thermometr needs 2 parameters: the I2C and its I2C address. These parameters are found in the const strucure termometro_adrress[6].
The I2C addresses are:

The codes for mamnaging the trimmer are:
